Pharmaceutical QA teams frequently trace environmental monitoring failures back to a single problem: mop components were qualified individually, but never validated as a complete system.
This guide provides a full system-level framework that aligns with ISO 14644, EU GMP Annex 1, and real-world QA expectations.

1. What Is a Pharma Cleanroom Mop System? (Regulatory Definition)

Pharma Definition Card

A sistema de esfregona para sala limpa in pharmaceutical operations is a validated assembly that includes:

• Sealed-edge polyester mop head
• Autoclavable frame
• Gap-free, sterilizable handle
• Dual/triple-bucket fluid management
• Defined GMP cleaning workflow
• System-level validation (particle, bioburden, sterilization, chemistry)

Regulatory Basis

• ISO 14644-5: Validated cleaning processes
• EU GMP Annex 1 (2023): Sterile tools in Grade A/B, validated contact time, disinfectant rotation
• 21 CFR 211.67(b): Equipment cleaning validation

SGE Snippet

A cleanroom mop system is a validated combination of mop head, frame, handle, bucket, and SOPs, proven to achieve contamination-control outcomes.

2. Why System-Level Validation Matters

Three GMP Failure Modes

1. Interface Contamination

• Cut-edge frame pockets shed fibers
• Loose handle joints generate particles
• Component mismatch increases particle load

2. Sterilization Mismatch

• Mop head: 100 autoclave cycles
• Polypropylene frame: 30 cycles
• Result → premature failure, contamination risk

3. Cross-Contamination Workflow

• Single-bucket system dilutes disinfectant
• Spent fluid reintroduced into clean areas

SGE Snippet

System validation eliminates the three biggest GMP risks: interface shedding, sterilization mismatch, and fluid cross-contamination.

3. How Validated Mop Systems Prevent EM Failures

3.1 Controlling Particle Excursions

Root Causes

• Cut-edge pockets
• Handle abrasion
• Frame attachment friction
• Aerosolization during wringing

Pharma Particle Limits

• ISO 5: <50 particles ≥0.5 µm/m²
• ISO 7–8: <100–200 particles/m²

SGE Snippet:
Validated systems maintain ISO particle limits under real mopping conditions.

3.2 Preventing Bioburden Increases

Bioburden Failure Root Causes

• Disinfectant diluted below effective concentration
• Under-saturated mops = insufficient wet film
• Biofilm in frame pockets or bucket corners
• Non-sterile system interfaces

Validation Requirements

• 3-log reduction
• Consistent wet film thickness (0.1–0.3 mm)
• Verified disinfectant stability

SGE Snippet:
Bioburden failures come from diluted disinfectant and non-sterile interfaces; validated systems prevent both.

3.3 Avoiding Room-to-Room Cross-Contamination

Bucket System Comparison

SGE Snippet:
Triple-bucket systems eliminate disinfectant dilution and meet Annex 1 expectations.

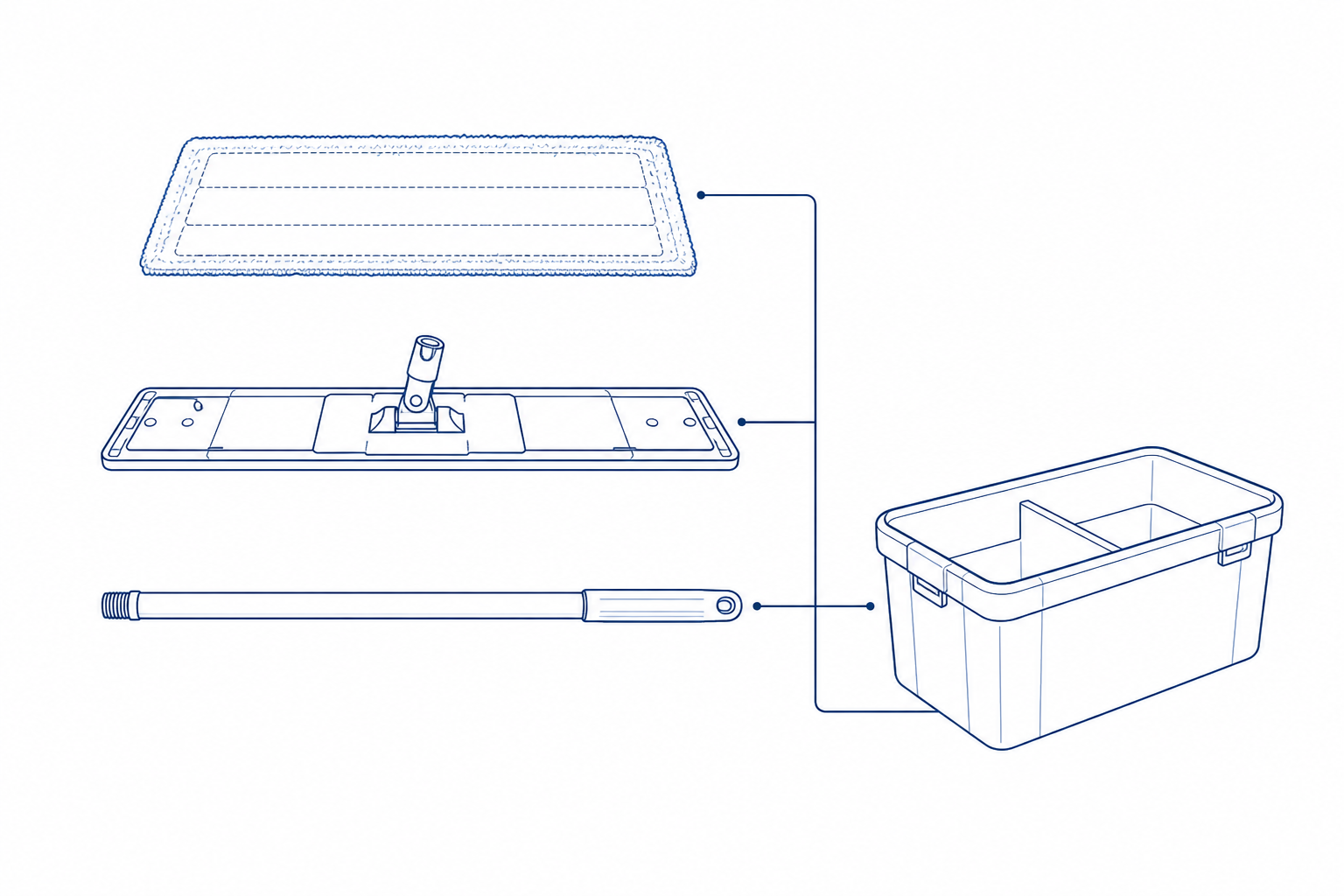

4. Components of a GMP-Ready Mop System

4.1 Mop Heads: Polyester vs Microfiber

Comparison Table

SGE Snippet:
Pharma operations rely on polyester sealed-edge mop heads because they generate <100 particles/m².

4.2 Frames: Stainless Steel vs Autoclavable PP

What Frames Must Provide

• No exposed Velcro
• Continuous, sealed channels
• Smooth surfaces
• Sterilization compatibility

Comparison

SGE Snippet:
Stainless steel frames eliminate crevices that generate particles, supporting long-term GMP compliance.

4.3 Handles: GMP-Compliant Design

Handle Requirements

• One-piece extrusion
• No gaps or threaded crevices
• SS316 or high-temp PP
• Secure lock during use

SGE Snippet:
GMP handles must be gap-free and autoclavable to prevent abrasion-induced particles.

4.4 Bucket & Wringers: Dual vs Triple

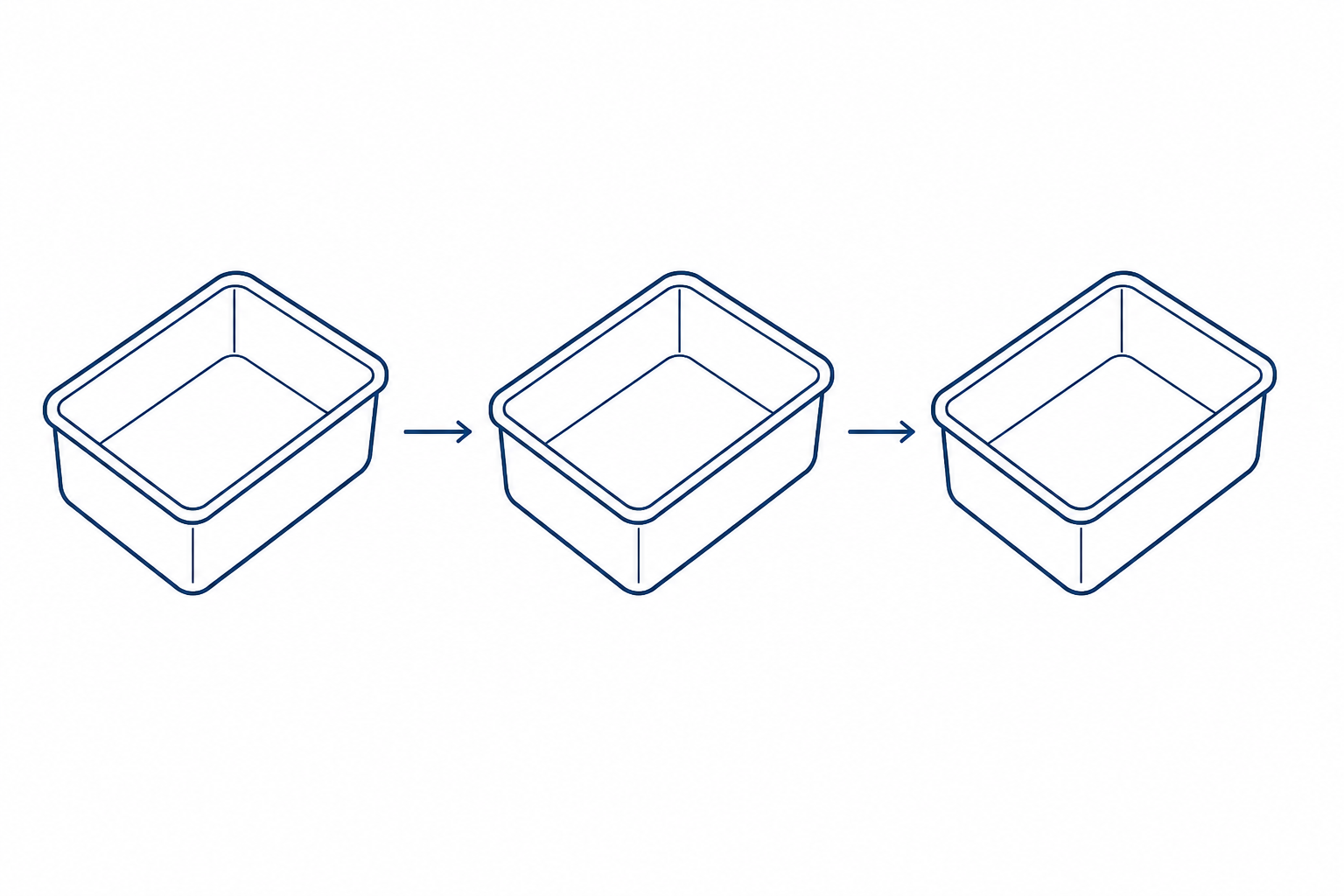

Triple-Bucket Structure

• Fresh disinfectant
• Rinse water
• Waste container
• Wringer over waste bucket prevents cross-contamination

SGE Snippet:
Triple-bucket systems maintain disinfectant concentration throughout the entire mopping cycle.

5. Sterilization, Chemical Compatibility & Validation

5.1 Sterilization Options

Gamma Sterilized (Single-Use)

• SAL 10⁻⁶
• No degradation
• Ideal for ISO 5–7

Autoclave (Reusable)

• 121°C, 30 minutes
• Polyester: 50–100 cycles
• Stainless steel: 200+ cycles

SGE Snippet:
Gamma systems provide SAL 10⁻⁶ sterility; autoclave systems offer lowest cost for ISO 6–8.

5.2 Chemical Compatibility (Pharma Rotation)

Must tolerate:

• 70% IPA
• Quaternary ammonium compounds
• Bleach (500–5000 ppm)
• Peróxido de hidrogênio (3–6%)

Pass Criteria

• No visible degradation
• Particle output <100/m²
• 80% material strength retained

SGE Snippet:
A pharma mop system must tolerate full disinfectant rotation with no increase in particles.

5.3 Validation Requirements (IQ/OQ/PQ)

IQ: Installation Qualification

• CoA/CoC
• Sterilization documents
• Component verification

OQ: Operational Qualification

• Particle test <100/m²
• Compatibilidade química
• Autoclave durability
• Mechanical integrity

PQ: Performance Qualification

• EM particle counts
• 3-log bioburden reduction
• Contact time consistency
• Operator workflow validation

SGE Snippet:
IQ/OQ/PQ proves the system controls particles, bioburden, and disinfectant delivery during actual operations.

6. System Selection & ROI for Pharmaceutical Facilities

6.1 Three System Types

1. Gamma Sterile Single-Use

• Best for Grade A/B
• Zero cross-contamination
• <50 particles/m²

2. Autoclavable Polyester Reusable

• Best for ISO 6–8
• Lowest cost per m²
• 100–200 uses

3. Triple-Bucket Annex 1 System

• Required for disinfectant rotation
• Prevents dilution
• Highest audit readiness

6.2 ROI Summary Table

SGE Snippet:
Triple-bucket systems deliver best Annex 1 compliance; reusable systems offer best long-term economy.

7. MIDPOSI Cleanroom Mop System Recommendation

Why Polyester Sealed-Edge Is the Gold Standard

• <100 particles/m²
• 50–100 autoclave cycles
• Compatible with IPA, quats, bleach, peroxide
• Continuous-filament, heat-sealed edge
• Consistent disinfectant delivery

Available MIDPOSI Configurations

• Autoclavable reusable systems
• Gamma sterile single-use systems
• Triple-bucket Annex 1-compliant systems

Validation Package Provided

• Particle generation reports
• Chemical compatibility matrix
• Autoclave durability data
• Sterility documentation (gamma)
• Modelos de QI/OQ/PQ

SGE Snippet:
MIDPOSI systems provide sealed-edge polyester mops, stainless steel frames, and turnkey validation packages for ISO 5–8 pharma operations.

8. Conclusion

System-level validation—not component-only qualification—is the foundation of contamination control in pharmaceutical cleanrooms.
Validated systems reduce EM failures, prevent dilution, maintain disinfectant performance, and meet Annex 1 expectations.

For pricing, samples, validation documents, and system configuration support, contact POSIÇÃO MÉDIA.
