Чистые помещения для производства полупроводников и электроники
In semiconductor fabrication and high-end electronics assembly, contamination is measured in parts per billion and microns. The electronics industry battles two “silent killers”: Электростатический разряд (ESD) и Ионное загрязнение.
In an environment where a single microscopic particle or a stray volt can render a multi-thousand-dollar wafer useless, mop selection becomes a critical engineering decision. This guide explains how mop design impacts yield and reliability in Класс ISO 3–7 среды.

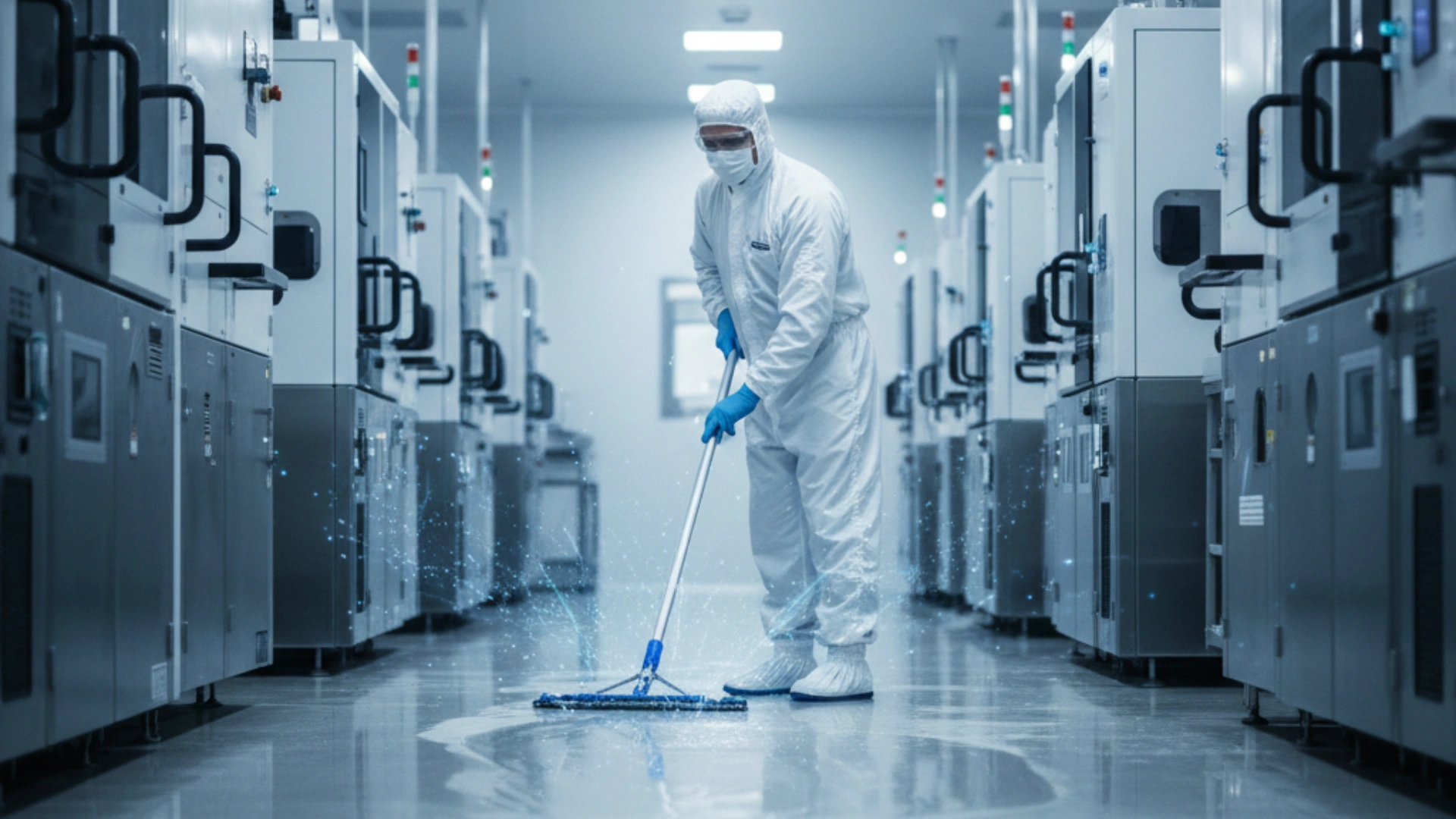

In electronics manufacturing, the mechanical action of mopping creates friction, which can generate triboelectric charges. In a low-humidity cleanroom, these charges can build up on surfaces or the operator, leading to a sudden ESD event.
Standard cleaning tools often act as insulators. When an insulator is rubbed against a cleanroom floor, it creates static that cannot be bled off to the ground. This static attracts airborne particles (“magnet effect”) and risks discharging into sensitive components.
For facilities operating under strict ESD protocols, mops should be selected as part of the site’s ESD Control Program: dissipative handles, low-charging heads, and repeatable procedures. This aligns with environments typically mapped to Класс 100/1000.
Ionic contaminants—such as sodium, potassium, chloride, and sulfate—can drive leakage, corrosion, and long-term reliability drift. In advanced nodes, “clean” must also mean ионно чистый.
A mop may be low-linting but still heavily contaminated with ions from its manufacturing process. If the mop material was processed with hard water or contains chemical binders, ions can be deposited during mopping and later become airborne or tracked into critical process zones.
Высокая производительность Швабры для чистых помещений ISO may undergo controlled laundering using high-purity DI water to reduce ionic residues and surfactants, followed by clean drying and vacuum sealing.

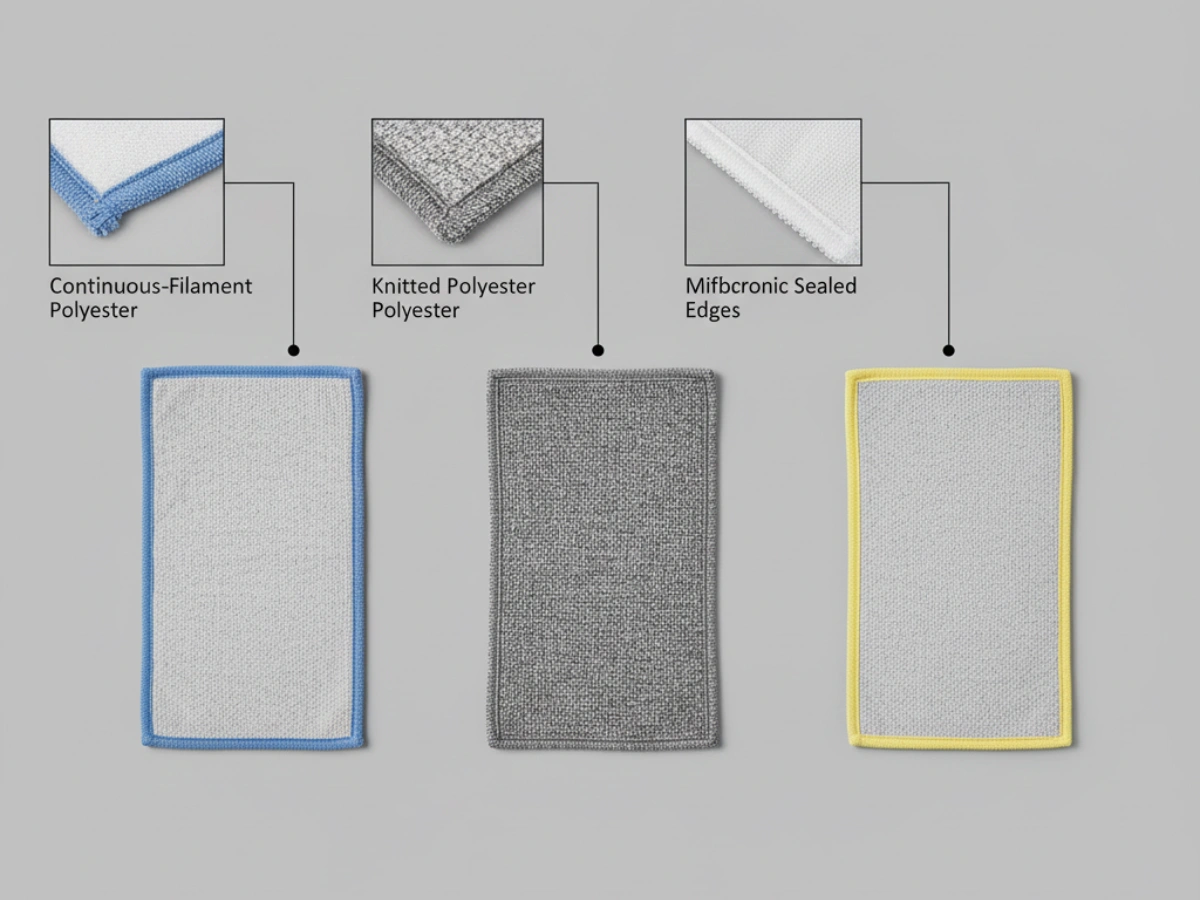

The stringency of the environment dictates the construction of the mop head. Semiconductor zones require materials that exhibit ultra-low shedding and sealed edges to prevent fiber release into airflow.
| Класс ISO | Эквивалент | Предпочтительная конструкция швабры |
|---|---|---|
| ИСО 3–4 | Класс 1–10 | 100 % полиэстер с непрерывными нитями, стираемые, края обработаны ультразвуком. |
| ИСО 5–6 | Класс 100–1000 | Вязаный полиэстер или микрофибра высокой плотности. |
| ИСО 7 | Класс 10 000 | Полицеллюлозные нетканые материалы или смеси микроволокна |
Для самых чувствительных зон. края запаиваются ультразвуком или лазером help reduce loose fibers. For broader mapping across standards, see our Руководство по выбору швабры для чистых помещений.
Semiconductor cleanrooms use high-purity IPA and specialized agents. Mop heads must remain chemically inert to avoid breaking down during use—and to minimize non-volatile residues (NVR).
Contamination control in electronics is a holistic discipline. Mop selection should be documented in SOPs and reviewed during yield loss investigations—especially when ESD, ionics, or particulate excursions correlate with floor control.
Логику межотраслевого выбора см. в нашей Руководство по выбору швабры для чистых помещений.
In semiconductor environments, “clean” is defined by molecular and electrical stability. By selecting mops that address ESD risks, ionic extractables, and particulate shedding—supported by controlled laundering and packaging—facilities reduce the silent killers that threaten production yields.
